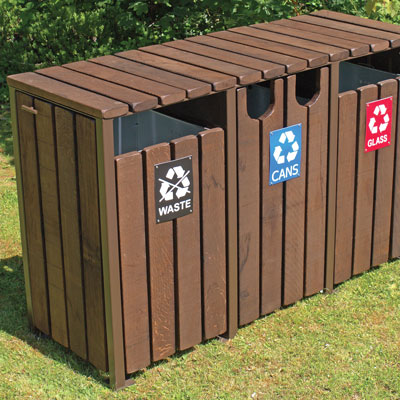

Holyhead Recycling Unit
Our recycling units have been designed to offer robust, attractive solutions for collecting separated waste in rural environments where typical shiny or brightly coloured designs would be unsuitable.

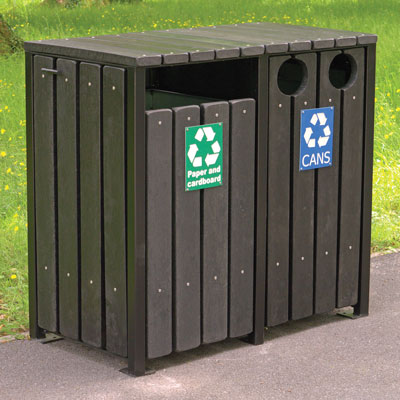

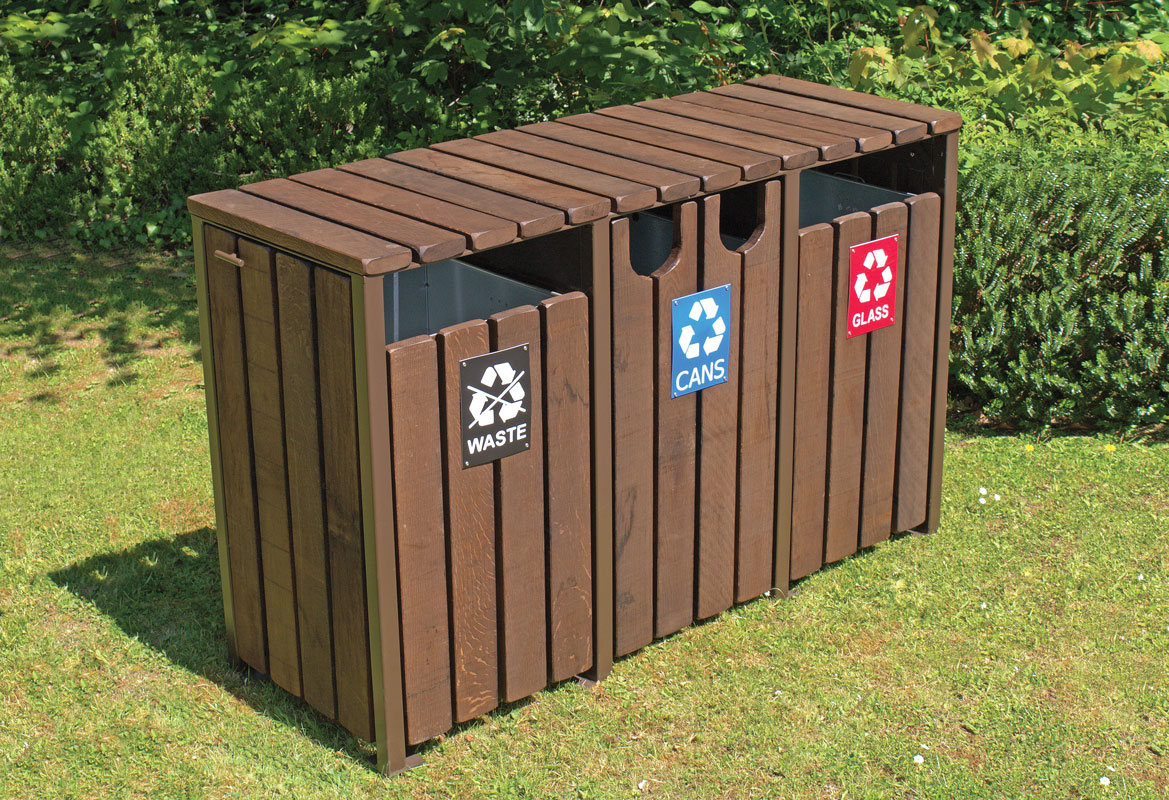

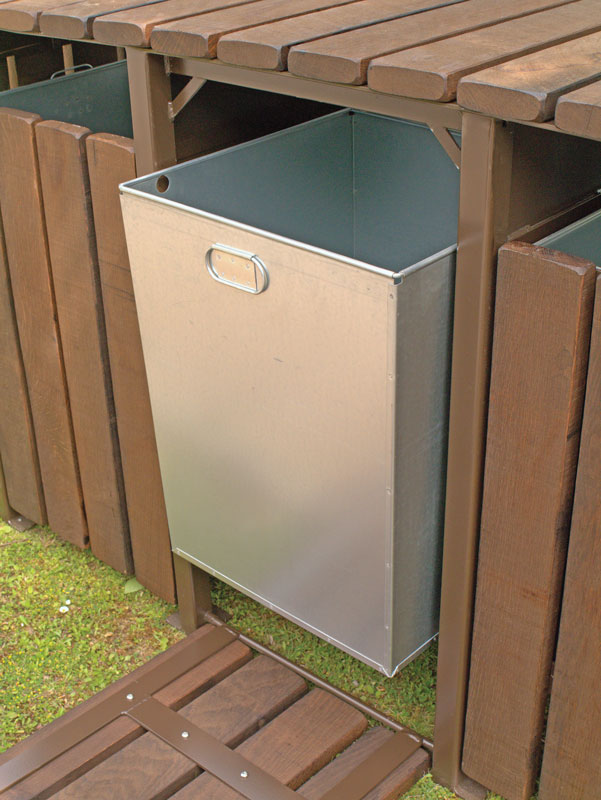

We offer two sizes of recycling unit: 330 litre and 220 litre. The 330 litre unit has three separate waste collection bays and the 220 litre unit has two. Each waste collection bay has its own galvanised steel liner accessed via a hinged door retained by a tamper resistant slam latch.
Both sizes of bin are available with recycled plastic slats in black or brown. Alternatively, for a more rustic, natural appearance the slats can be specified in partially dried European oak finished in dark oak stain.
We offer standard configurations of waste aperture as shown in the following photographs, but we are able to accommodate customer requests for different apertures to suit specific applications.
A variety of engraved plastic signs covering a range of waste materials can be supplied pre-attached to the units. Bespoke signage can be supplied to customer specification at additional cost.
- Legs 40 x 40 x 2.5mm hollow
- Slats 30 x 100mm recycled plastic or 25 x 95mm Oak
- Capacity Double Unit approx. 220 litres.
- Capacity Triple Unit approx. 330 litres.
- Weight approx. 200kg.

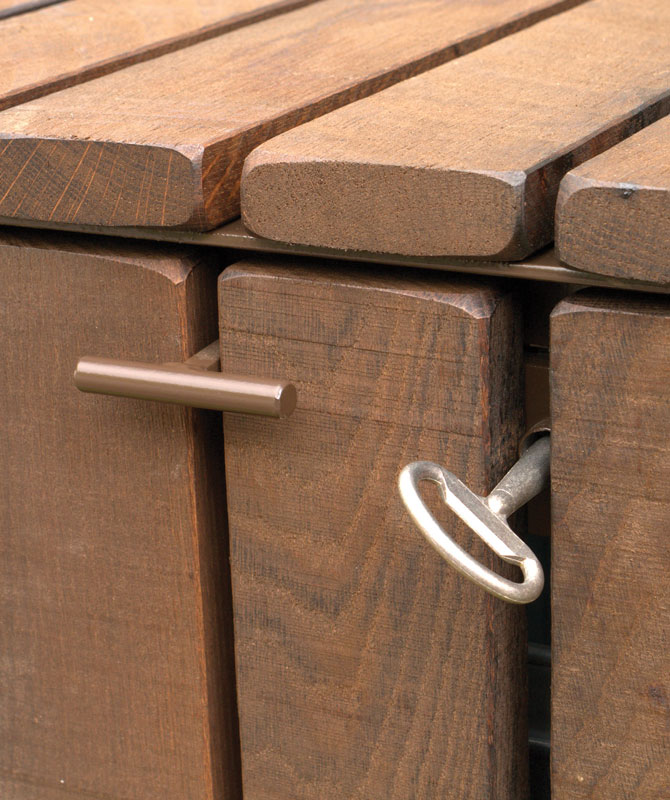

Shrouded tamper resistant operating spindle
Substantial slamlatch
Opening arrangementFor the installation of bins onto existing suitably firm grassed areas and bituminous macadam surfaces, ground anchors can be used.
The bins have a flanged single post mounting which bolts to the AB3 bin anchor (after it has been installed), with tamper resistant shear nuts.
This will only work for macadam surfaces laid onto earth or hardcore, as opposed to concrete.
Cardiff Bin with single post mounting for ground anchoringSTEEL BENCHING ALTERNATIVE PRODUCTS
