Octagonal Seating Units
Double flanged castings for our Georgian and Victorian designs facilitate the production of more complex seating arrangements, which can greatly enhance a landscape project.

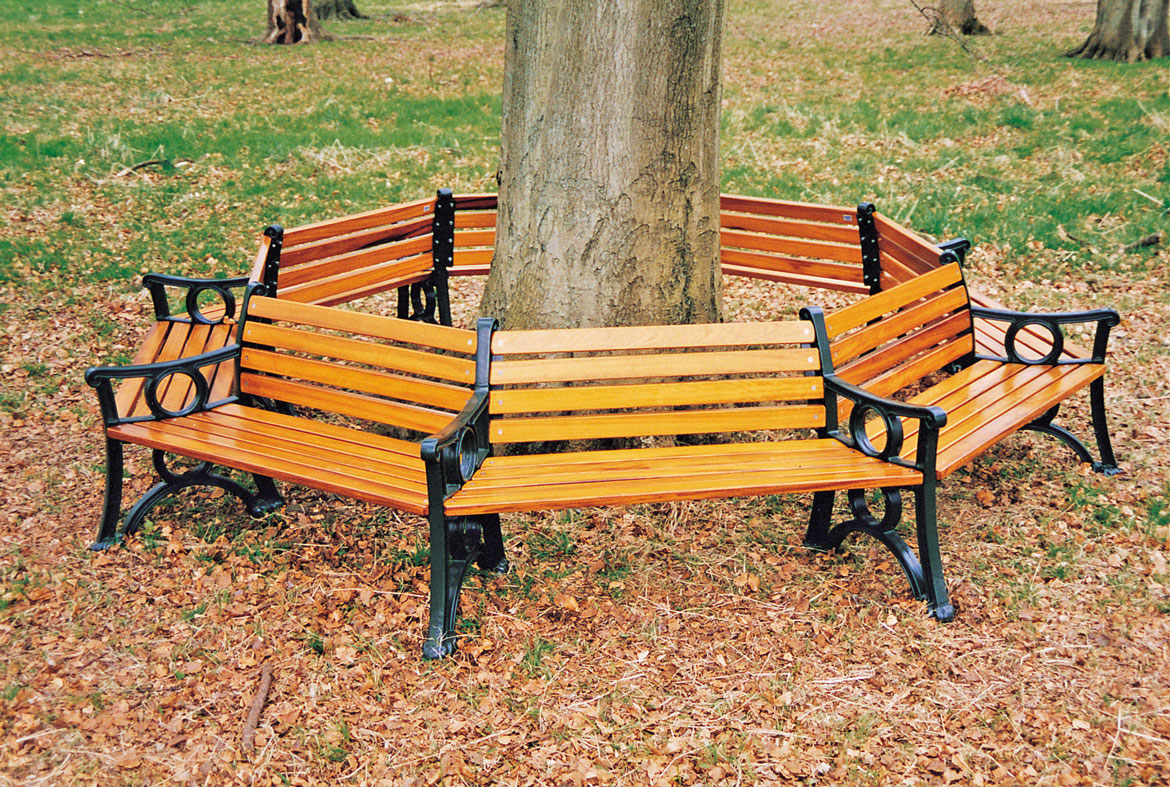

Octagonal units are ideal for encircling planters, trees or other architectural features, and are supplied in four standard sizes, with boards in either iroko or seasoned oak. Intermediate sizes can also be supplied, and larger sizes, up to a clear internal diameter of 5600mm are possible.
Octagonal units based on Georgian and Victorian castings are available, as are both standard and heavy-duty versions. Segments of octagons can also be supplied, giving further seating options. The sitters face outwards as standard, though segments of octagons can be specified enabling the sitter to face inwards at no extra cost.

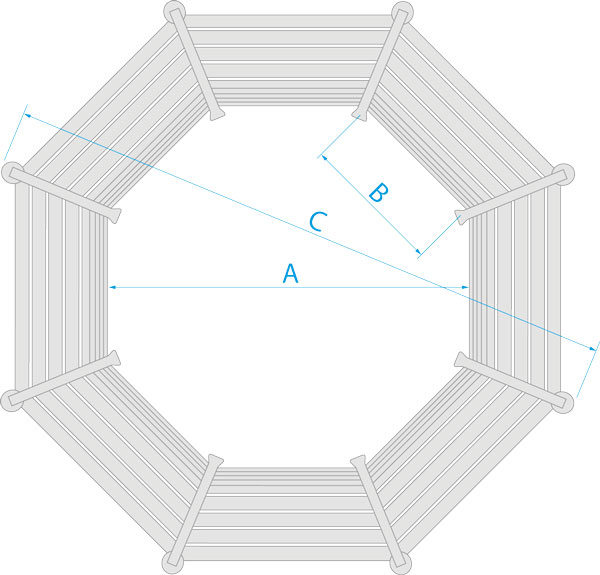

| Size | Seating capacity per sector | AClear internal diameter (mm) | BLength of top back board (mm) | CMaximum outside diameter (mm) |
|---|---|---|---|---|
| 1 | 1 | 1250 | 500 | 2650 |
| 2 | 2 | 2200 | 890 | 3675 |
| 3 | 3 | 3150 | 1280 | 4705 |
| 4 | 4 | 4115 | 1680 | 5750 |
Available in either Acrylic Coating or Street-Tough finish in a range of standard colours. Also available in any RAL or BS colour at additional cost.
